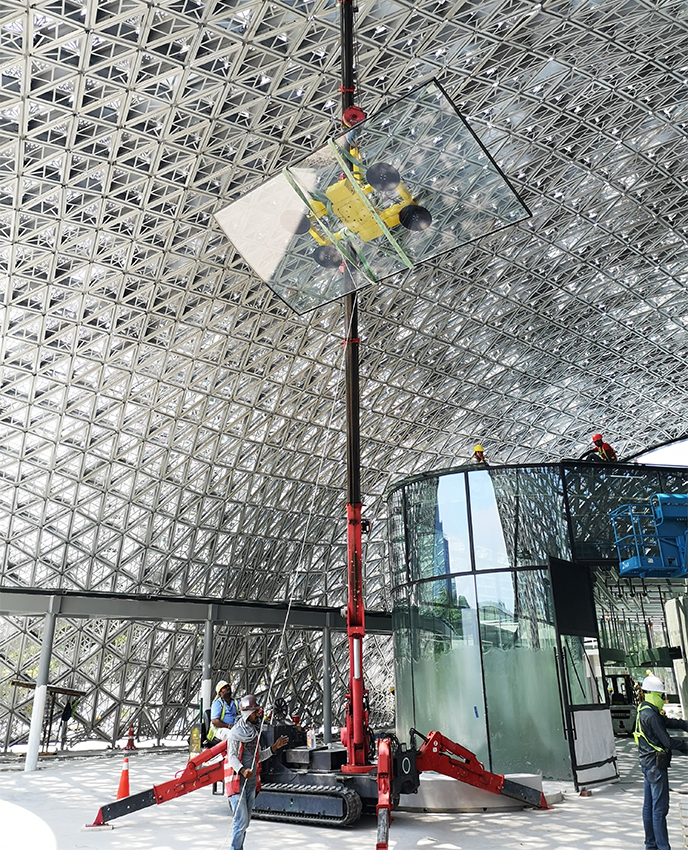

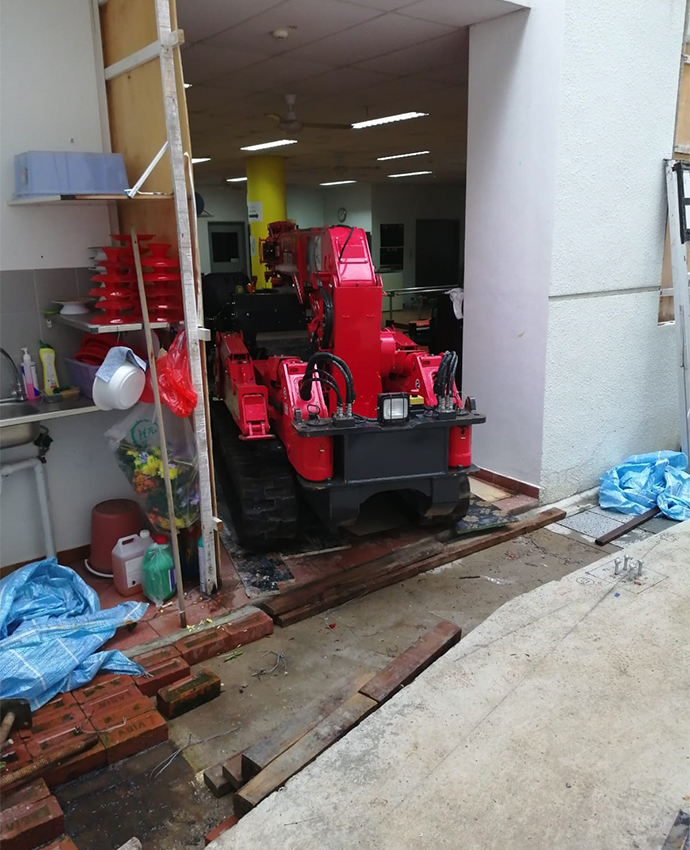

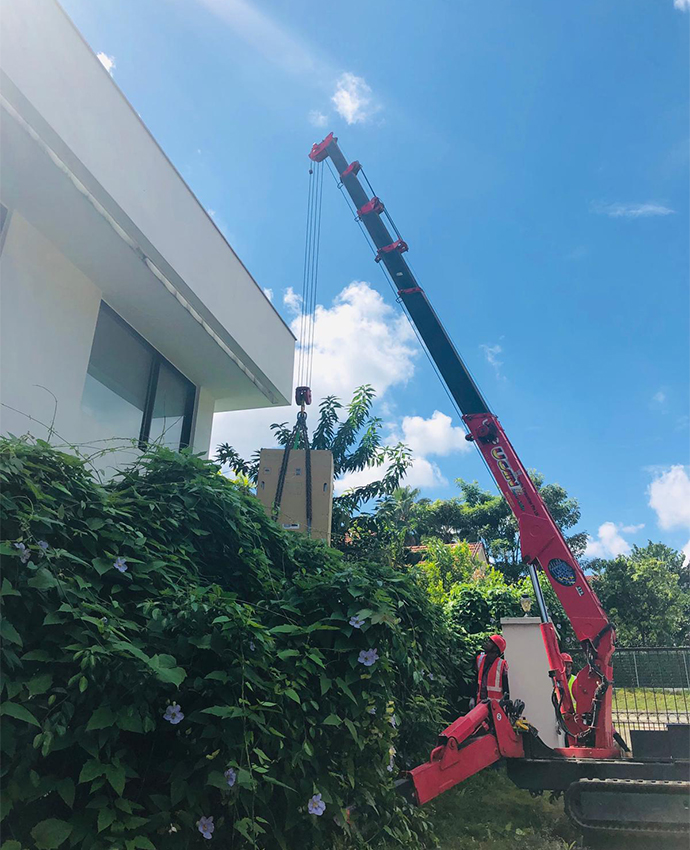

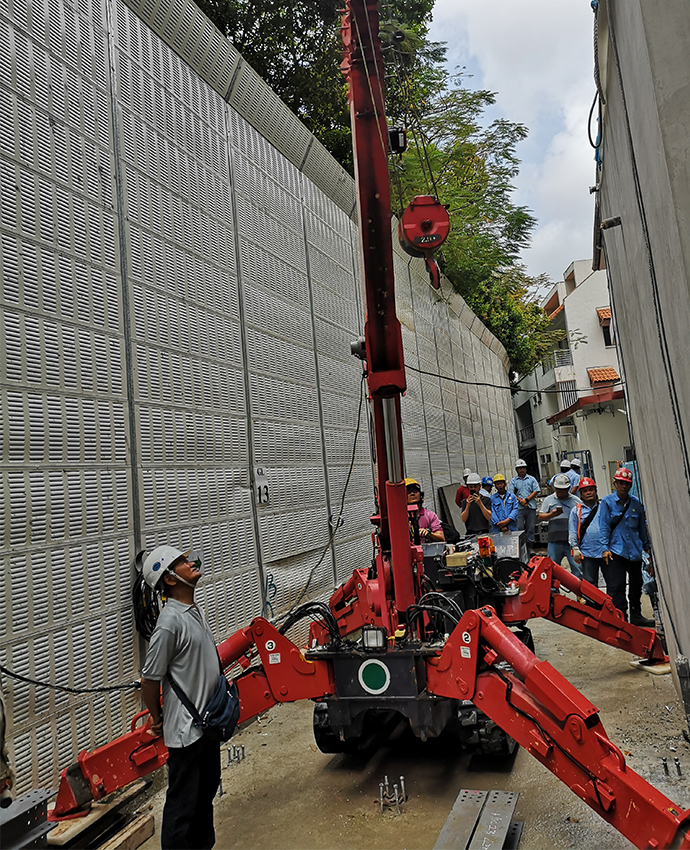

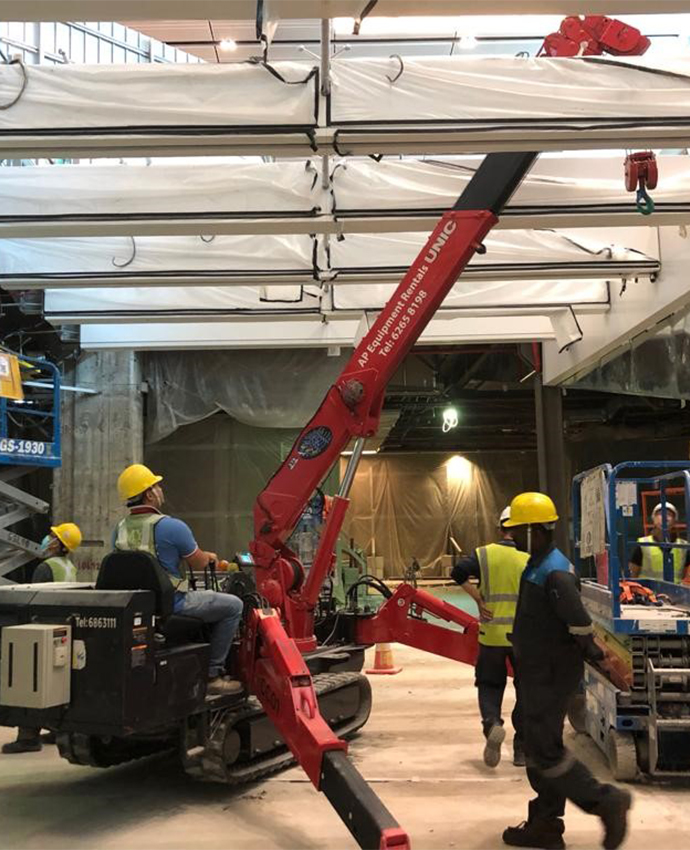

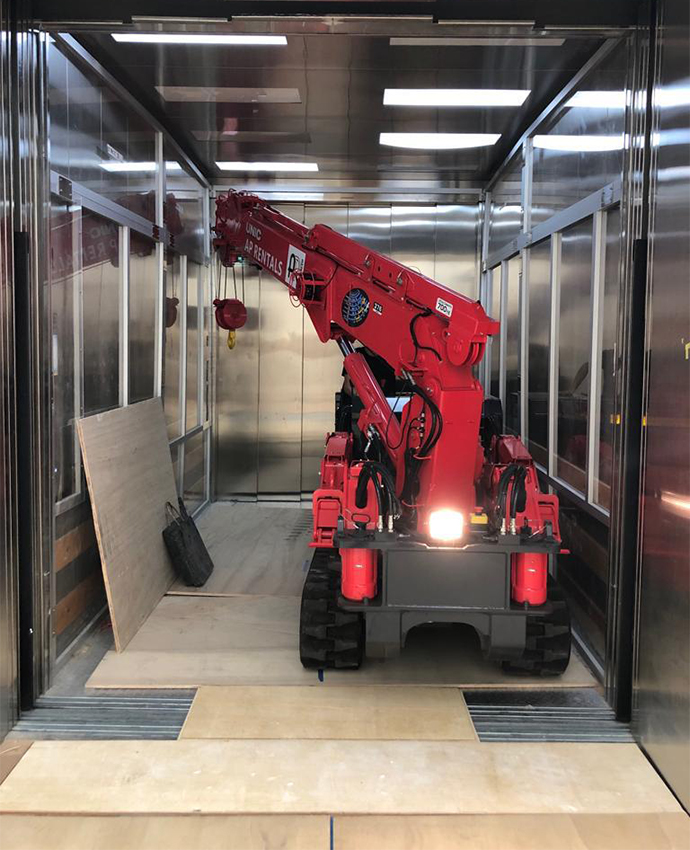

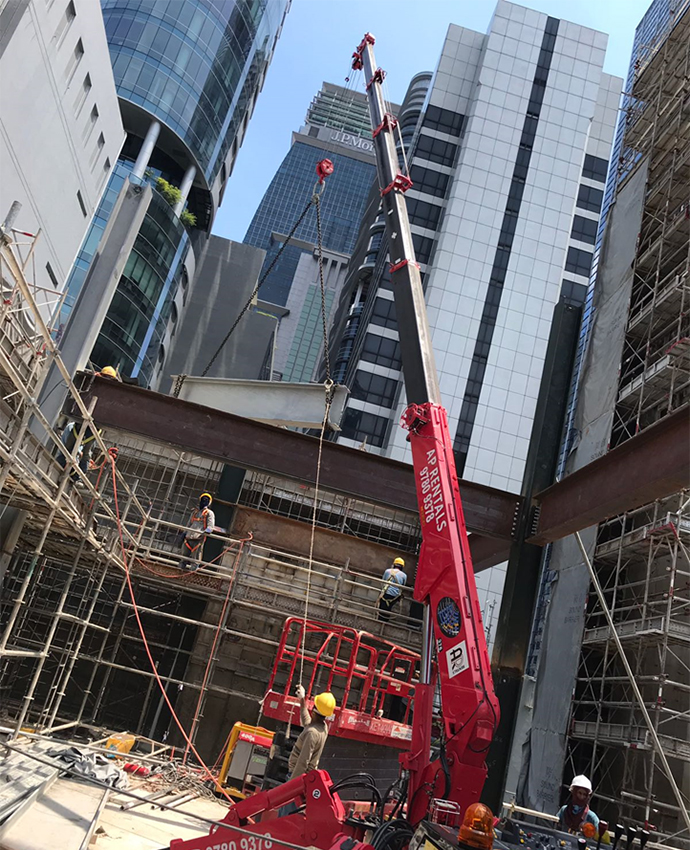

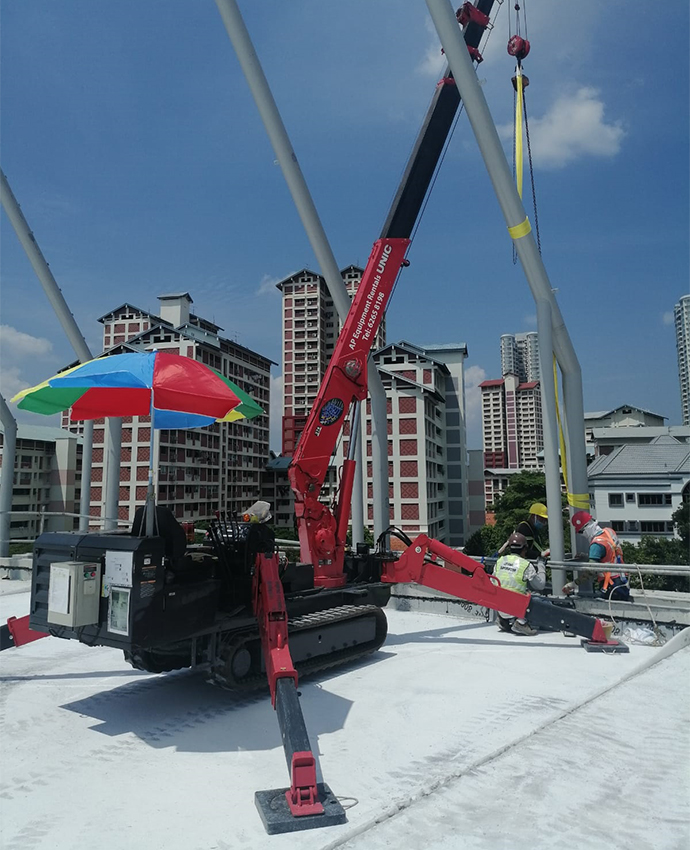

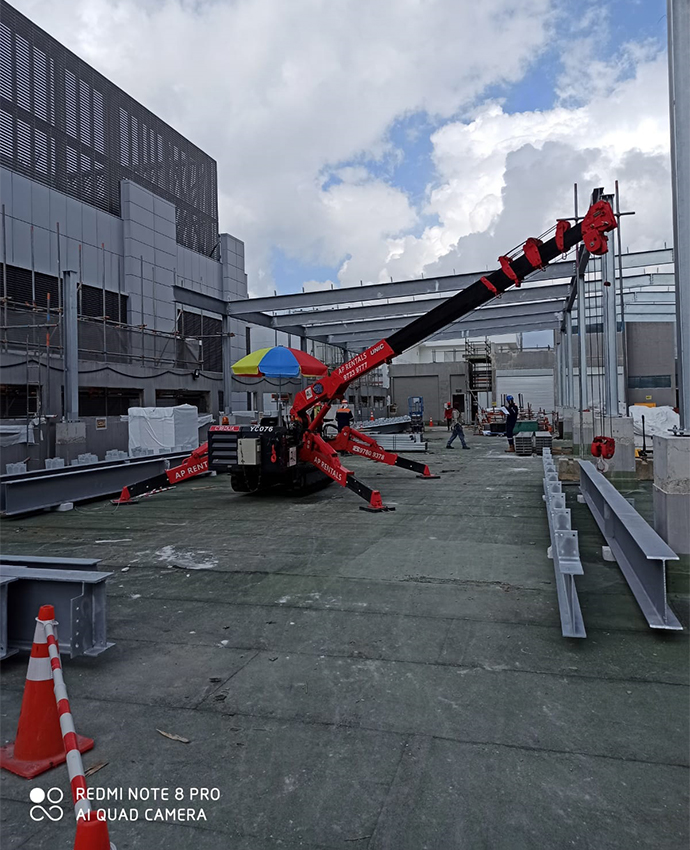

UR-W376C
UR-W376C offers a generous 14.9m lifting height and 14.45 working radius, yet at only 2000mm wide, it still retains class-beating minimal dimensions for working in restricted areas.

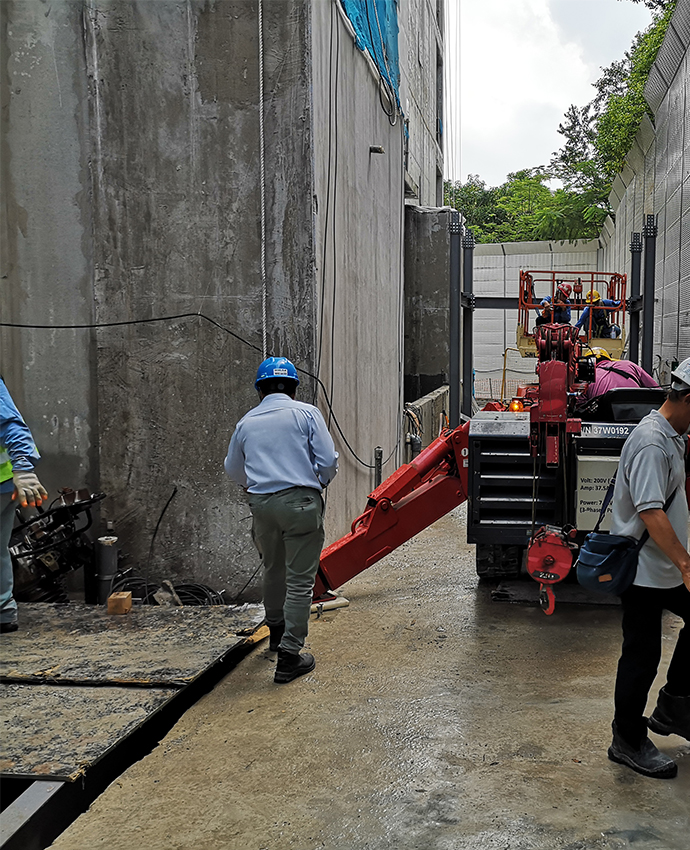

The middle-sized UNIC mini-crawler crane can be operated either from the on-board operator seat or from a distance using a remote control.
- Max. Hook Height:: 14.9m
- Max. Lifting Capacity:: 3.03t at 2.5m
- Mass of Crane:: 3870kg
- Max. Working Radius:: 14.45m
| MODEL | UR-W376C |
|---|---|
| Max. Hook Height | 3.03 t at 2.5 m |
| Max. Working Radius | 14.45 m |
| Max. Hook Height (Approx.) | 14.9 m |
| Max. Boom Length | 14.61 m |
| Min. Boom Length | 3.63 m |
| Boom Sections | 6 |
| Boom Raising Angle | Min. 0 to Max. 80° |
| Slewing Angle | 360° Continuous |
